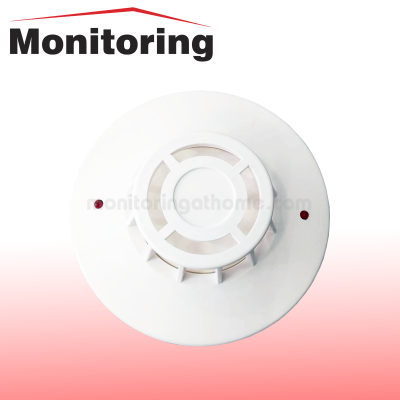

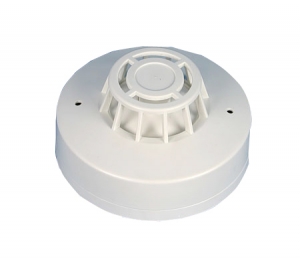

Heat detector  2-Wire FIXED TEMPERATURE HEAT DETECTOR เซนเซอร์ ตรวจจับ ความร้อน

TEMPERATURE TRIP POINT: 135F (57C )

Technical Specification

OPERATING VOLTAGE DC9~35V

STATIC CURRENT
 2-Wire 55uA

ALARM CURRENT
 2-Wire 30mA(DC 12V)
 2-Wire 55mA(DC 24V)

ALARM OUTPUT:
2-Wire Remote Indicator On
TEMPERATURE TRIP POINT: 135 (57 )
OPERATING TEMPERATURE:-10 ~+50
OPERATING HUMIDITY : 95 RH


Alarm Output: LED, Network output
Dimension: Φ100*40mm
