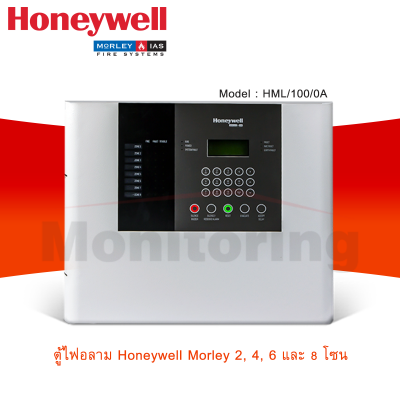

ตู้ไฟอลาม Honeywell Morley HML/100/0A Fire Detection Control Panel series

ตู้ไฟอลาม Honeywell Morley 2, 4, 6 และ 8 โซน ไฮบริดแสดงผลได้สูงสุดถึง 256 ตำแหน่ง

จอแสดงผลแบบ LCD รายงานการแจ้งเตือนได้ทุกตำแหน่ง ง่ายต่อการใช้งานและบำรุงรักษา

Morley-Lite Fire Detection Control Panel series is ideally

suited for Small to Medium Sized Buildings, Residential Complexes,

Banks, Healthcare, Restaurants, Retail Stores etc. Morley Lite panels

communicates via LiteSpeedTM protocol with Morley Lite detectors and

devices.

WIRING DIAGRAM

FEATURES

Display : 16 X 4 Char LCD Screen.

Control Keys : Silence Buzzer, Silence/Resound Alarm, Reset,

Evaluate, Accept delay. Indicators: Fault, NAC

Fault, Earth Fault, Fire, Power, System Fault

WIRING DIAGRAM

Mechanical Specifications

Dimensions (H X W X D) : 360 X 422 X 122.8 mm

(Front Facia), 360 X 380 X 92.3 mm (Back Box)

Weight : 5.8 Kg Approx. (No Battery Fitted)

Construction : Powder coated Cold Rolled STEEL 1.2mm thick

Cable Entry : 15 X 20mm Knockout

Operating Temperature : 0 to 49°C

Relative Humidity : 5% to 95% Non-Condensing

Electrical Specifications

Operating Voltage : 230V-AC +/- 20% Output current 2A maximum, Alarm Load

1A Maximum

Standby Batteries : Minimum capacity 2 x 12 V 2.8Ah,

Maximum capacity 2 x 12 V 7 Ah

Detection Circuits : 2, 4, 6, 8 Class B Circuit, Max 2mA per Detect or Circuit

Approved Detectors : Honeywell Morley Lite Series

Programmable Inputs : Configurable (Alarm, Reset, Evacuate)

Programmable Input : Extended closing contact

Trigger External Outputs : Sounder Outputs:

• 2 monitored outputs

• 0.5 Amps per circuit

Auxiliary Output:

• 18.5 to +28.5 Vdc, 0.5 Amp. (max)
