Input Voltage

AC100-240V

Input Voltage Frequency

50/60Hz

Output Voltage :

DC 12V +/-5%

Total Output Current :

10A

Total Outputs :

9CH

Fuse Type :

PTC  ( Resettable ) Never need to replace.

Fuse Rating :

1.25A

Features :

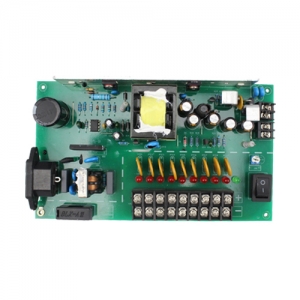

Thermal Cutoffs Protection (TCO): each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.

Short circuit protection: when short condition occurs, independent PTC fuse will open the circuit, when condition removed, PTC fuse will automatically back to close.

High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.

Batterry over charging protection, Discharging protection, anode & cathorde wrong connect protection

Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.

Application :

CCTV Camera, IP Camera, PTZ, IR Illuminator, DVR, Access Control , etc.

Size :

203*163*54mm

Net Weight :

2.2 KG

Carton :

10pcs/ctn

Certification:

CE/ROHS/UL
