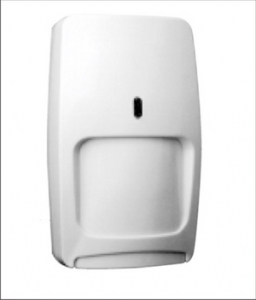

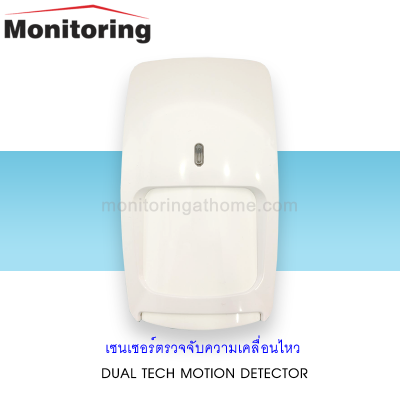

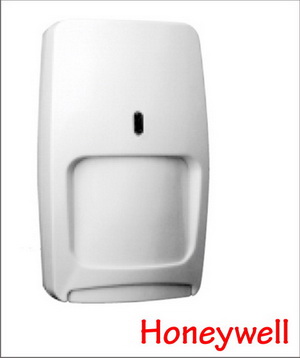

Model   DT-7225

Range

- 25’ x 30’ (7.6 m x 9 m)

Alarm Relay

- Energized Form A

- 500 mA, 30 VDC

Power Requirements

- 7.5 - 16VDC

- (8.9 - 14.5 VDC for UL installations)

- 25mA

- AC Ripple: 3V peak-to-peak at 12VDC nominal

Frequencies

- 24.125GHz (K-Band)

PIR White Light Immunity

- 6500 LUX typical

RFI Immunity

- 30V/m, 10MHz - 1000MHz

Operating Temperature

- 14° to 131° F (-10° to 55° C)

- 5% - 95% relative humidity (noncondensing)

PIR Fields of View

- 22 long range edges

- 12 intermediate edges

- 6 lower edges

- 4 look-down edges

Dimensions

- 4.685” x 2.795” x 1.654” (11.9 cm x 7.1 cm x 4.2 cm)

Sensitivity

- 2-4 steps within field of view

Accessories

- SMB-10 Swivel Mount Bracket
