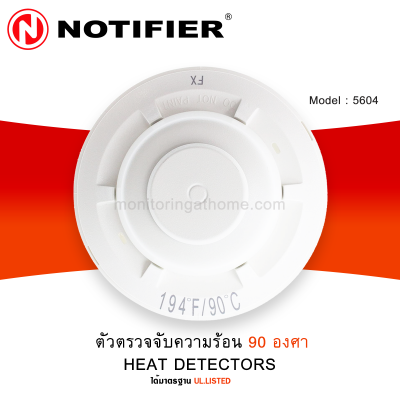

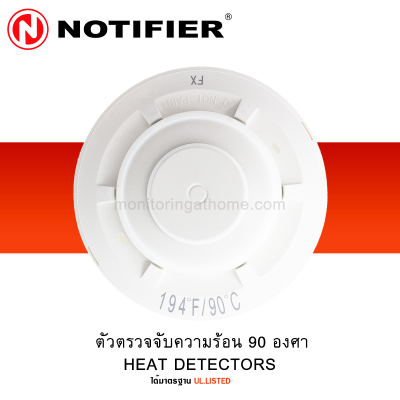

ตัวจับความร้อน 5604 Heat Detector Operation Temperature  90°C/194F

เซ็นเซอร์ จับความร้อน สำหรับระบบแจ้งเหตุไฟไหม้ ใช้ในระบบ

Conventional Fire alarm system

เหมาะสำหรับ ติดตั้งในตึกอาคาร คอนโด สำนักงาน โรงงาน

System Sensor’s 5600 Series mechanical heat detectors offer
a low-cost option for property protection against fire and for
non-life-safety installations, where smoke detectors are inappropriate.

Specifications:

Operating Voltage/Contact Ratings (Resistive) :  6 – 125 VAC / 3A

       6 – 28 VDC / 1A

        125 VDC / 0.3A

  250 VDC / 0.1A

Maximum Installation Temperature :  Models 5601P, 5603, 5621, and 5623: 100°F (38°C)

 Models 5602, 5604, 5622, and 5624: 150°F (65.6°C)

Alarm Temperature : Models 5601P, 5603, 5621, and 5623: 135°F (57°C)

Models 5602, 5604, 5622, and 5624: 194°F (90°C)

Rate-of-Rise Threshold : 15°F (8.3°C) per minute

(models 5601P, 5602, 5621, and 5622 only)

Operating Humidity Range : 5 to 95% RH non-condensing

Input Terminals : 14 – 22 AWG

Back Box Mounting : 31⁄2˝ octagonal

4˝ octagonal

Single gang

4˝ square with a square to round plaster ring

Dimensions with mounting bracket : Diameter: 4.57 inches (11.6cm)

Height : 1.69 inches (4.3cm)

Weight : 6 oz. (170 grams)

ORDERING INFORMATION

Model : 5604

Circuit : Single

Temperature Rating : 194°F (90°C)

Activation : Fixed-Temperature

UL Protected Spacing,10' (3.048 m) Ceiling* : 25 ft. x 25 ft. (7.62 m x 7.62 m)

FEATURES

• Multiple configurations available:

— Fixed-temperature (non-resettable) or combination fixed

(non-resettable)/rate-of-rise (self-restoring).

— Low-temperature and high-temperature ratings.

— Single-circuit and dual-circuit.

• Easy-to-read alphanumeric identification of detector type

and temperature rating.

• External collector provides visual indication of activation.

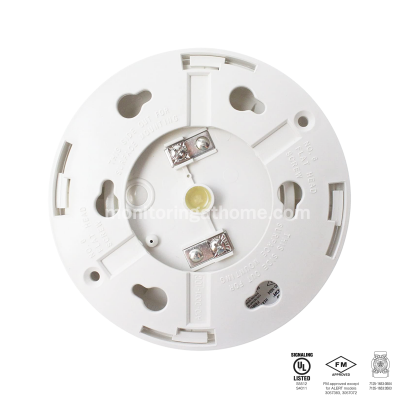

• Reversible mounting bracket for flush- and surface-mount

installations.

• Flexible mounting capabilities: single-gang, 3.5" or 4" octagonal,

4" (101.6 mm) square with plaster ring.

• Easy-to-use terminal screws provide a more positive wiring

connection.

• Low-profile design to coordinate with room aesthetics.

Insatallation :
