Easy Installation and Use
- With built-in WiFi
- Ceilling mount and wall mount are adaptable
- User-friendly software and mobile app, enables remote configuration
and viewing through CMS or MEESO mobile app.
Specifications

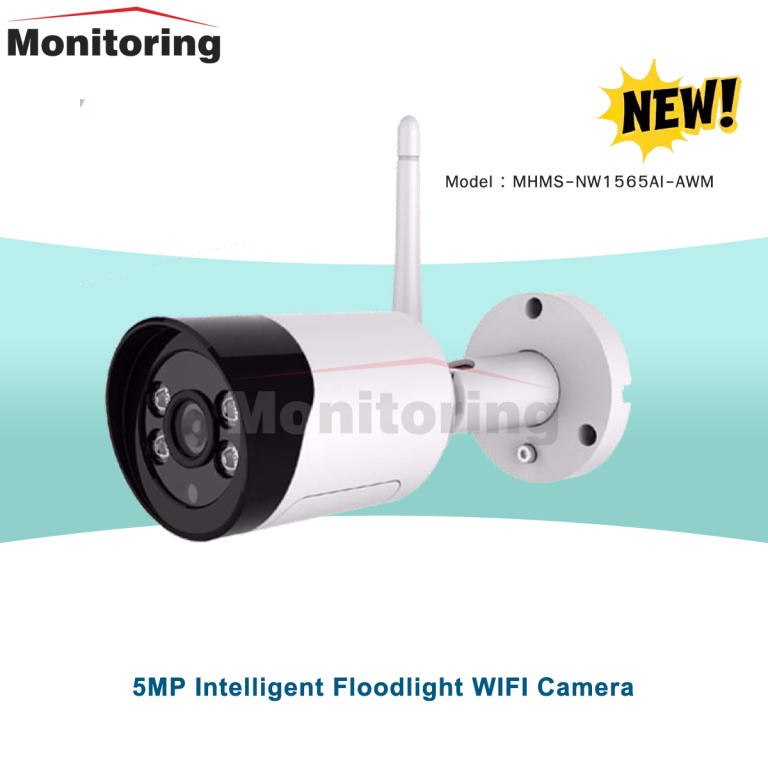

5MP Intelligent WiFi Network Camera
Sensor : 1/3" F37H CMOS sensor
Processor : Embedded RTOS, dual-core 32-bit DSP (MS368)
Lens : 3.6mm lens
Day & Night : Support IR-CUT, Dual Optical Filters, Day/Night modes auto switch
IR LED : 4 Black Light LEDs, IR Range 30M
Minimum Illumination : Color 0.1Lux@F1.2, black/white 0.01Lux@F1.2
Shutter Speed : 1/50(1/60)s to 1/10,000s
Privacy Masking : Up to 4 area
Video
Video Compression : H.265+ coding, support dual stream
AVI; 0.1M~6Mpbs variable
Dual stream : Main Stream 2Mbps~6Mbps, Sub Stream 512kbps~2.5Mbps (adjustable)
Resolutions : Main Stream: 2880*1616@25fps; 2560*1440@25fps; 2304*1296@25fps; 1920*1080@25fps; Sub-stream: 800*448@25fps;
Image Settings : AE Reference, BLC, White Balance, DWDR, AGC
Snapshot : JPEG format
Noise Reduction : 2D/3D noise reduction
AGC & WB & Exposure : Auto Gain Control, Auto White Balance, Auto Exposure
Audio
Audio Compression : G.711 standard compression,support two-way Bidrectional Talk, support for audio and video synchronization
Audio Input/Output : Built-in mic, Built-in speaker
Network
Network Protocol : 1 RJ45 Ethernet interface, 10/100M adaptive
Safety : Password protection
Water Mark : Support
3G/4G : N/A
WIFI : Support
SD card : Support 128G SD card at max
Compatibility : Onvif 2.4
Max. User Acess : 10 users
Mobile monitoring : Support multiple mobile monitoring(iOS,Android)
Environmental
Temperature : -10℃~60℃
Reliability : omprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature
stable and reliable testi
Humidity : <95% (No condensing)
Waterproof : IP66
Vandal Resistance : /
General
Braket : Ceiling/Wall Mount Bracket
Casing : Superior aluminum alloy, Good cooling effect

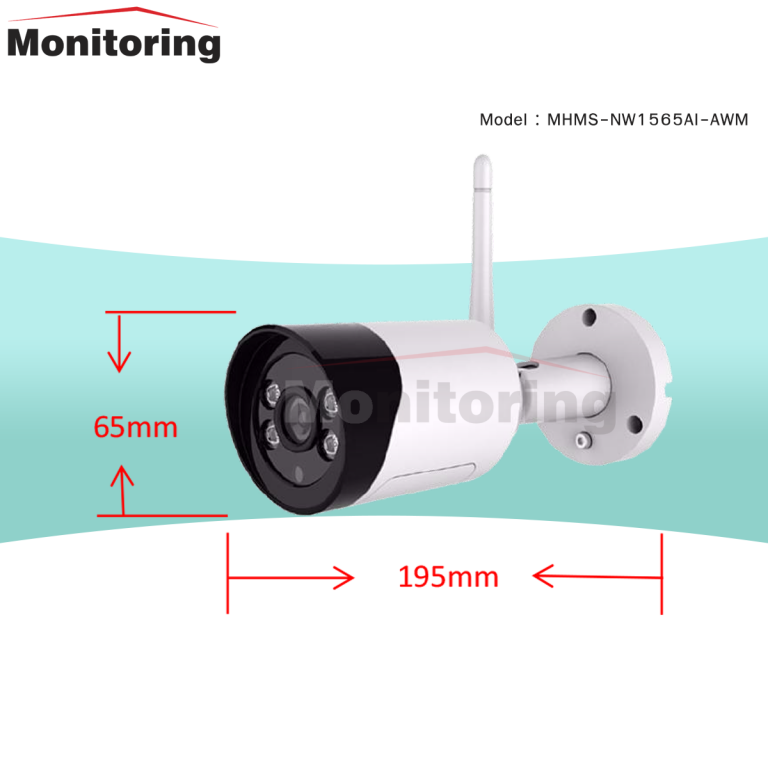

Dimension : 195*65*65mm
Weight : Around 0.5KG
Power : DC5V-12V
Connectors : RJ45; DC
