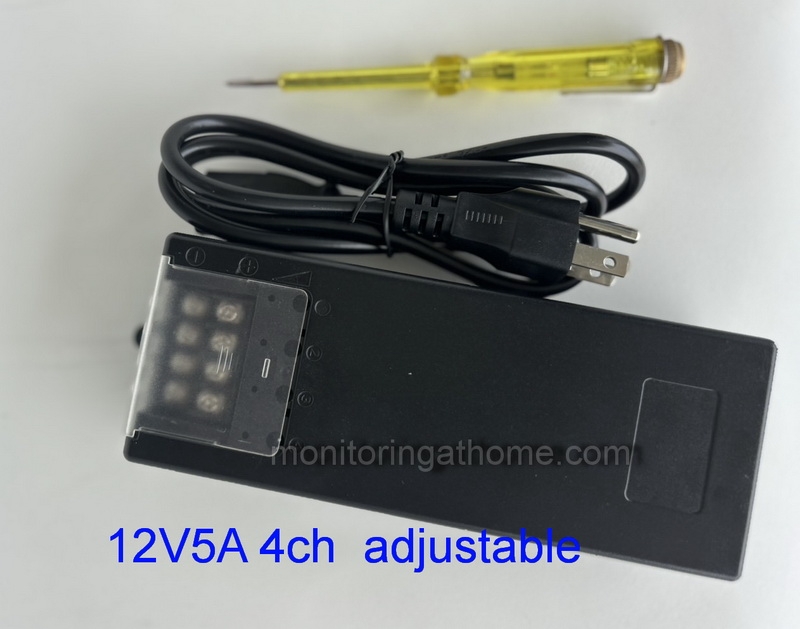

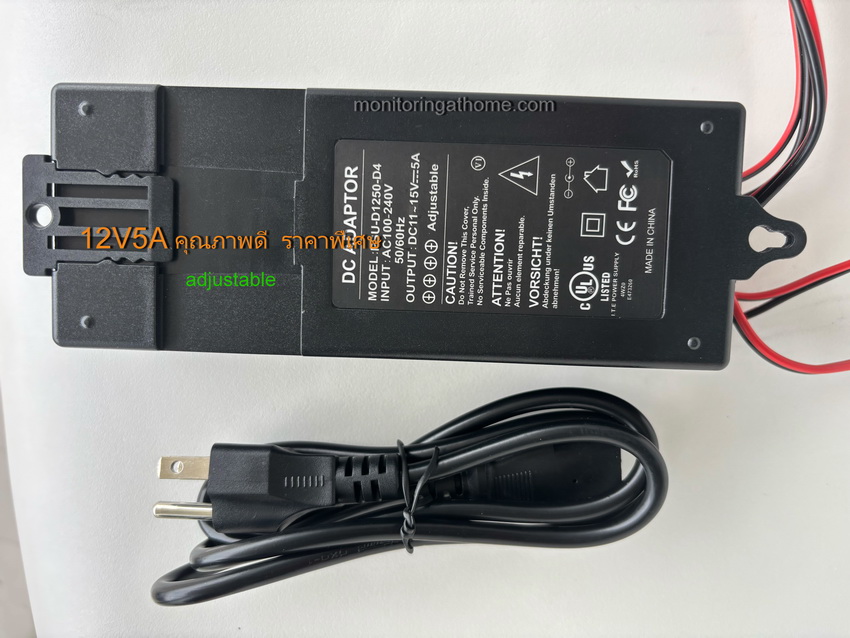

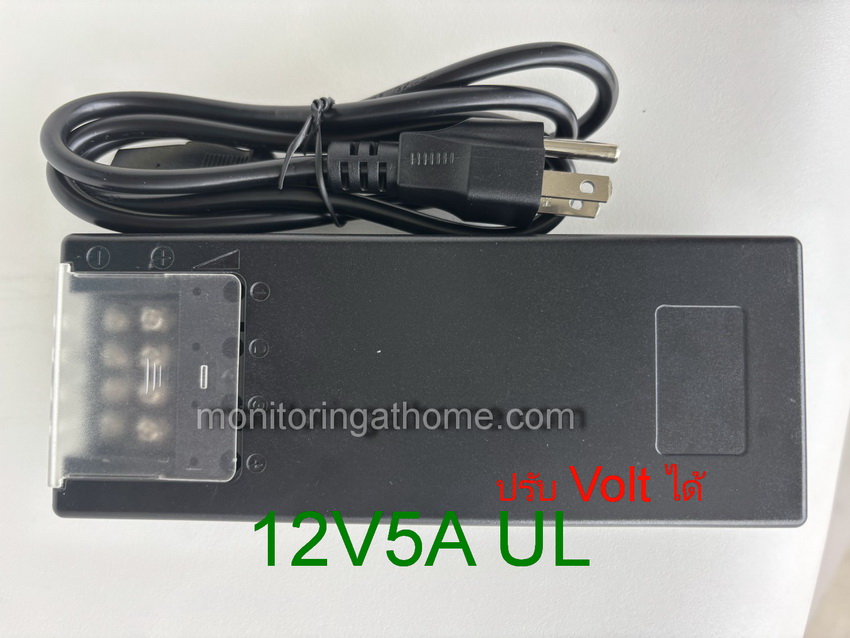

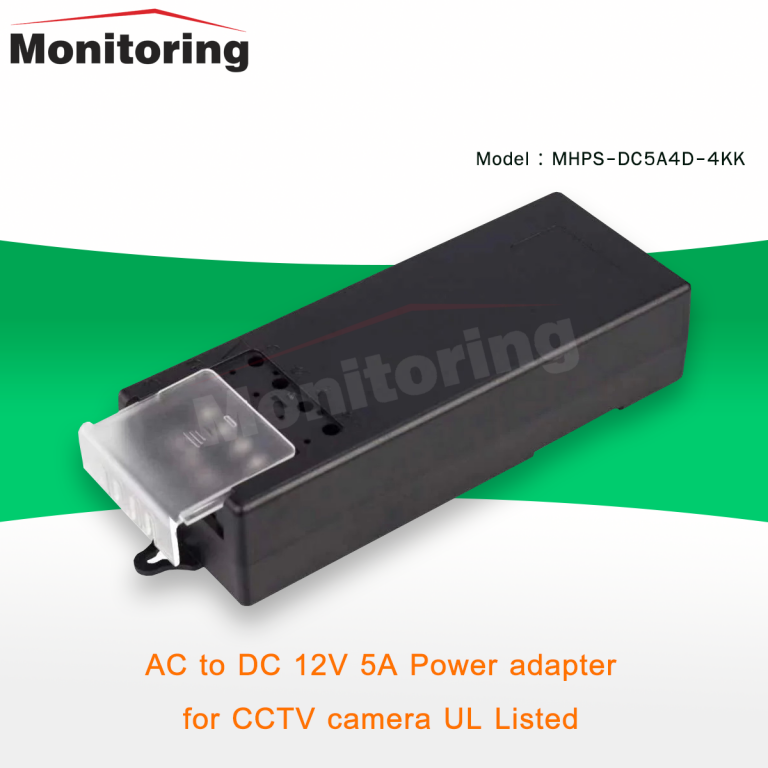

Power adapter AC to DC 12V 5A (UL Listed)

Highlights
Power adapter AC to DC 12V 5A
for CCTV camera UL Listed

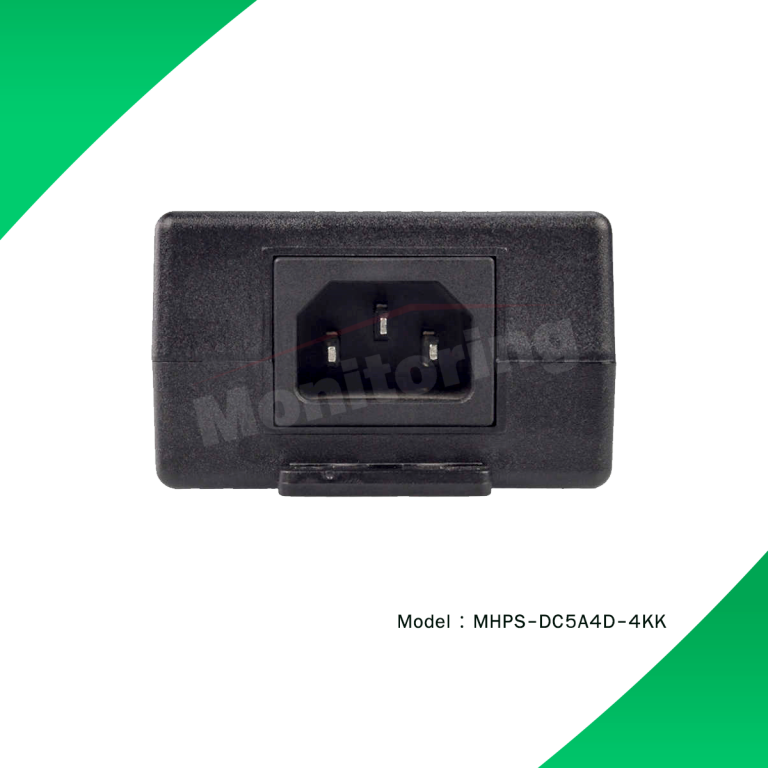

CodeMHPS-DC5A4D-4KK
Qty
DC12V 5A 4Channels Independent Output Ajustable Power Adaptor Support 4K
DC12V 5A 4Channels Input Voltage AC100~240V Independent Output
Ajustable Power Adaptor Support 4K

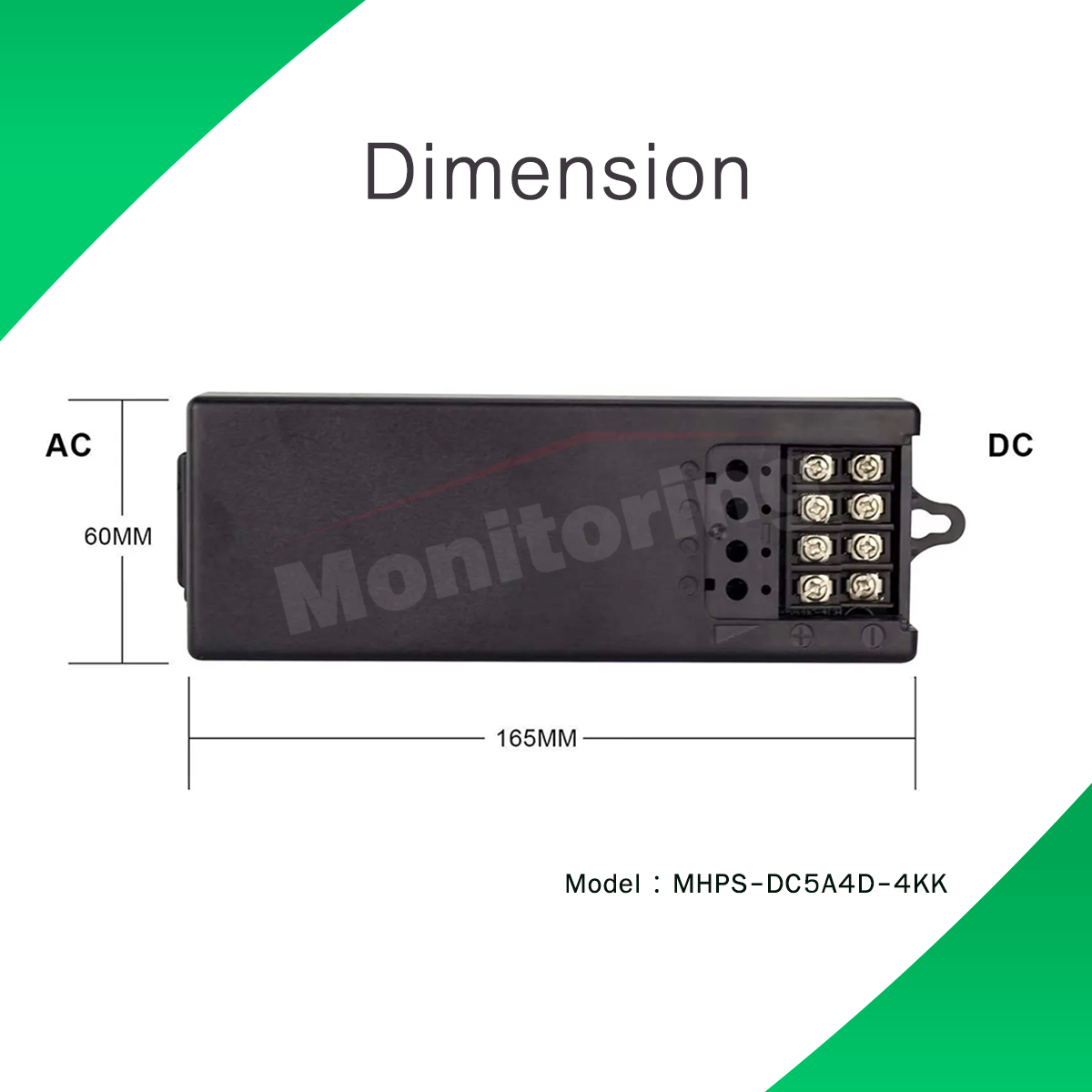

Dimension


Features

- Universal AC input range, universal.
- Use 105℃ long-life electrolytic capacitor.
- Short circuit / over voltage / over current / over temperature protection.
- The installation method is flexible, guide rail
- Installation, fixed installation, easier operation.

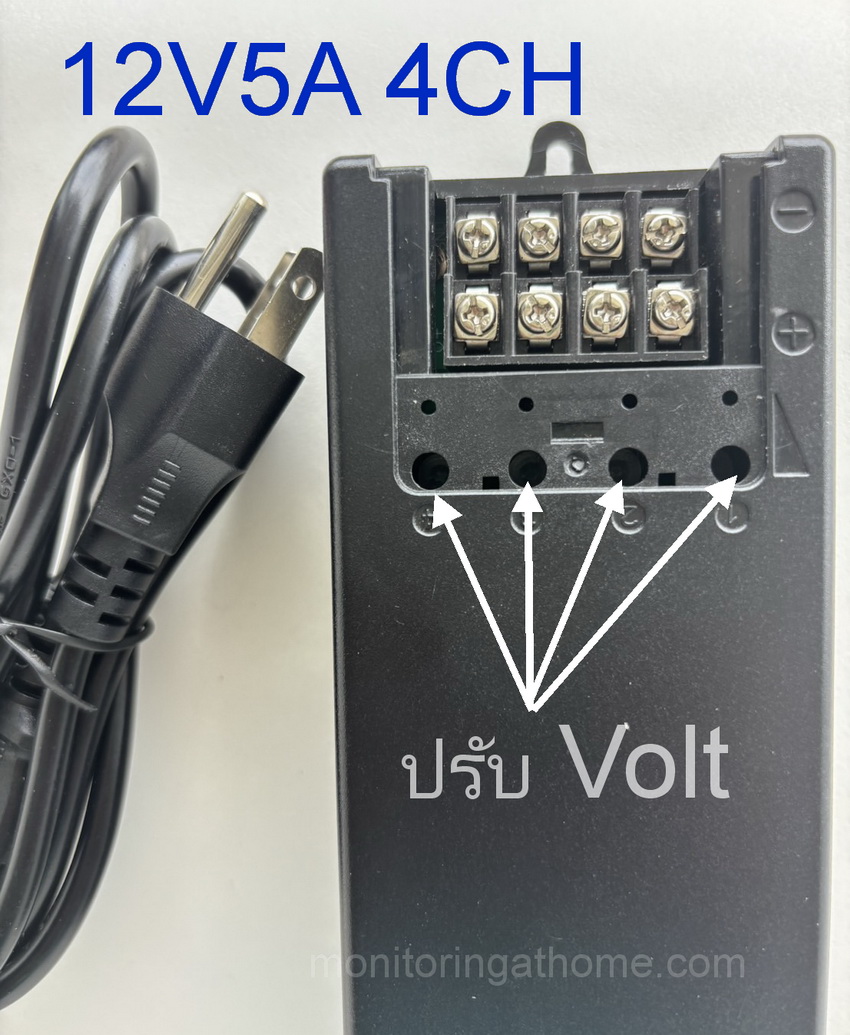

- Each output 4CH independent output.
- Each output 4CH independent LED display.
- MAX-10~45℃ working temperature.

Parameters Table

- Item: Power Adapter
- Input Voltage: AC100~240V
- Output Voltage: DC 11-15V ±5%
- Total Output Current: 1.25A 4CH (MAX 5A)
- Input Fuse Rating: 3.15A 250V
- Operating Temperature: MAX-10~45℃
- Carton Dimension: 50.5×42×29cm
- Packaging: 24PCS/Carton
- Size: 165*60*37mm
- Color: Black
- Load regulation: A ±5%
- Life: 10000 hours
